Project

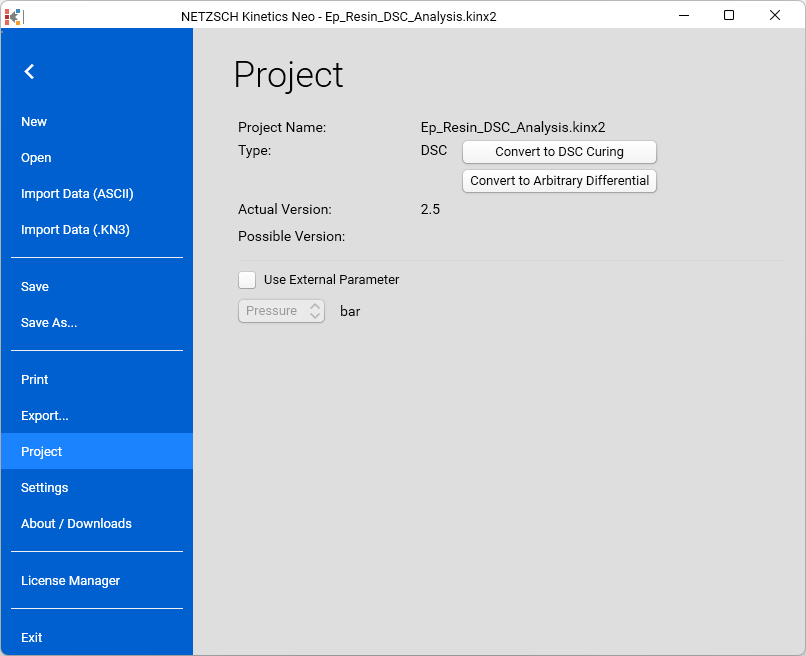

Kinetics Neo contains information about a loaded project and offers also the possibility to convert a DSC project into DSC Diffusion Control and vice versa.



Actual Version: actual version of the Kinetics Neo project file. May be lower as the maximum possible version for the current release. In this case, some features of the newest version may be disabled. It is possible to save the current project file as the newest project file version to enable all the features.

Possible Version: maximum possible version of the project file for the current Kinetics Neo release. For compatibility reasons, it is possible to save the project file as an older version.

Convert to DSC Curing: DSC project (without Curing) can be converted to the DSC project with Curing or in opposite direction.

Convert to Arbitrary [Differential / Integral] : some projects can be converted to arbitrary projects where another signals can be analyzed and user can label the chart axes by himself.

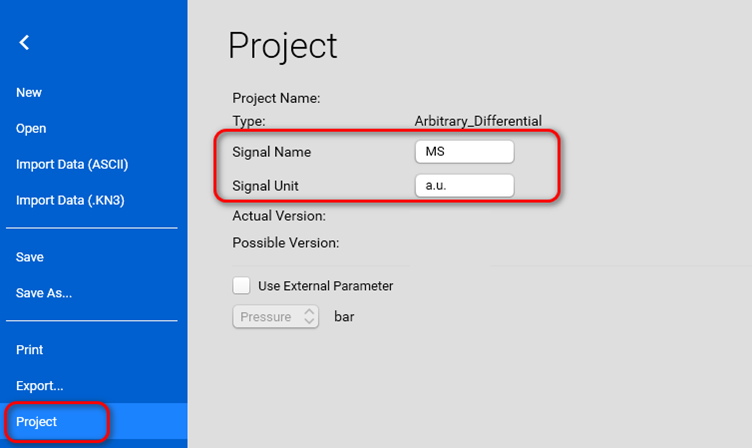

Arbitrary Project Settings

When project is converted to Arbitrary type then it is possible to set the Signal Name and Signal Unit directly in the project panel:



Use External Parameter

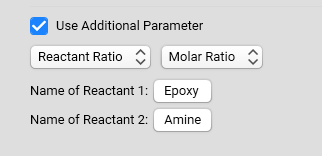

Set Use External Parameter and select it from the list, if reaction rate of your process depends not on temperature only but on the second parameter like pressure, intensity of UV light or different reactant concentrations in two-component reactions.

You can also read more details about External Parameter.
